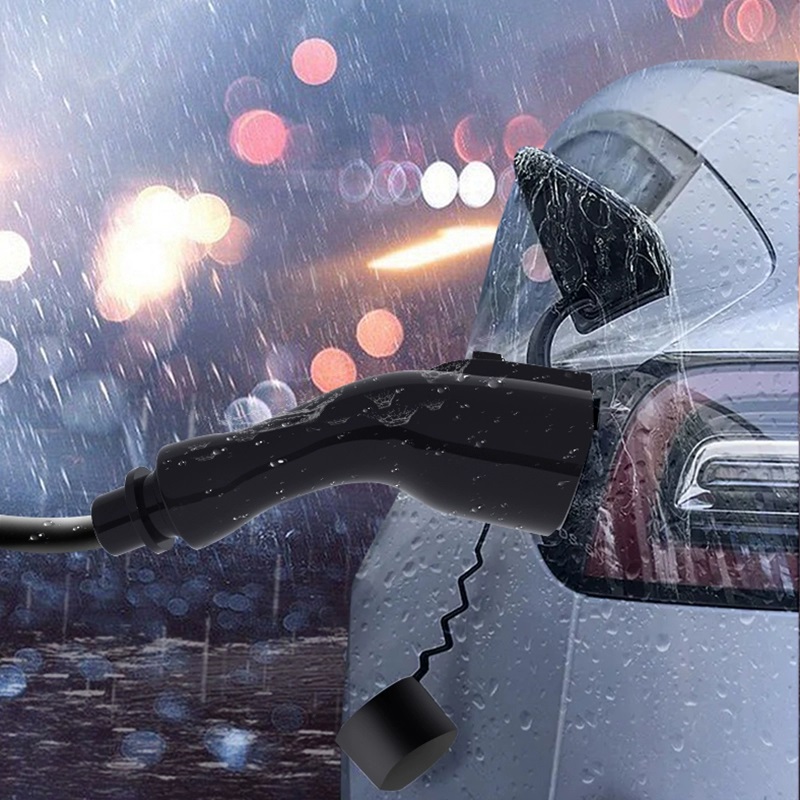

International Common Interface: Complies with the IEC 62196-2 standard, supports Type 2 interface electric vehicles in regions such as the European Union, the United Kingdom, and Australia, and is compatible with CCS2/AC hybrid plugs.
Wide Voltage Input: Supports 200-240V (single-phase) / 380-415V (three-phase), adapting to the power grid environments of different countries.
| Rated Power | AC 7KW | AC 11KW | AC 22KW |
| Product Model | 7kw plastic shell | 11kw plastic shell | 22kw plastic shell |

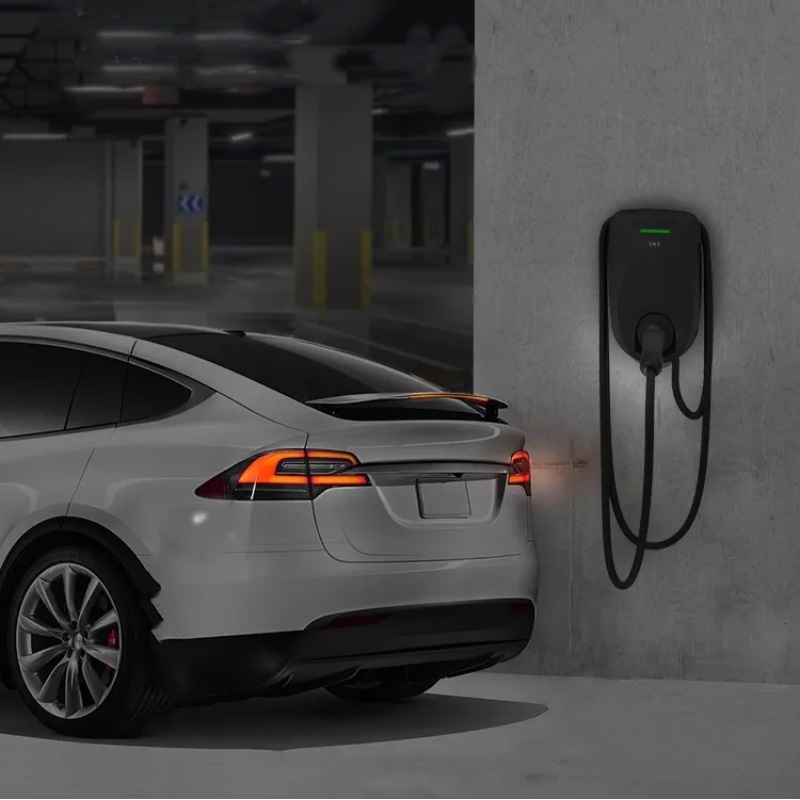

| Installation Method | Wall mounted | ||
| Overall Dimensions | 230 * 85 * 370 (mm) | ||
| Weight | About 4 KG | ||
| Output Mode | Single circuit, European standard cable, 5M length | ||
| Interface | LED lamp, 4.3 inch LCD touch screen (optional) | ||
| Input Voltage | AC220V ± 20% | AC380V ± 20% | AC380V ± 20% |
| Input Frequency | 45-65Hz | ||
| Output Current | Single Phase 32A | Three Phase 16A | Three Phase 32A |
| Charging Mode | Plug and play, automatic full, regular charging | ||
| Payment Method | Swipe card charging, scan code charging | ||
| Safety Function | Overvoltage, undervoltage, overload, short circuit, grounding, lightning, emergency stop, leakage protection, adhesion detection | ||
| DLB | Dynamic Load Balancing Supported | ||
| Protection Level | IP54 | ||
| Cooling Method | Forced air cooling | ||
